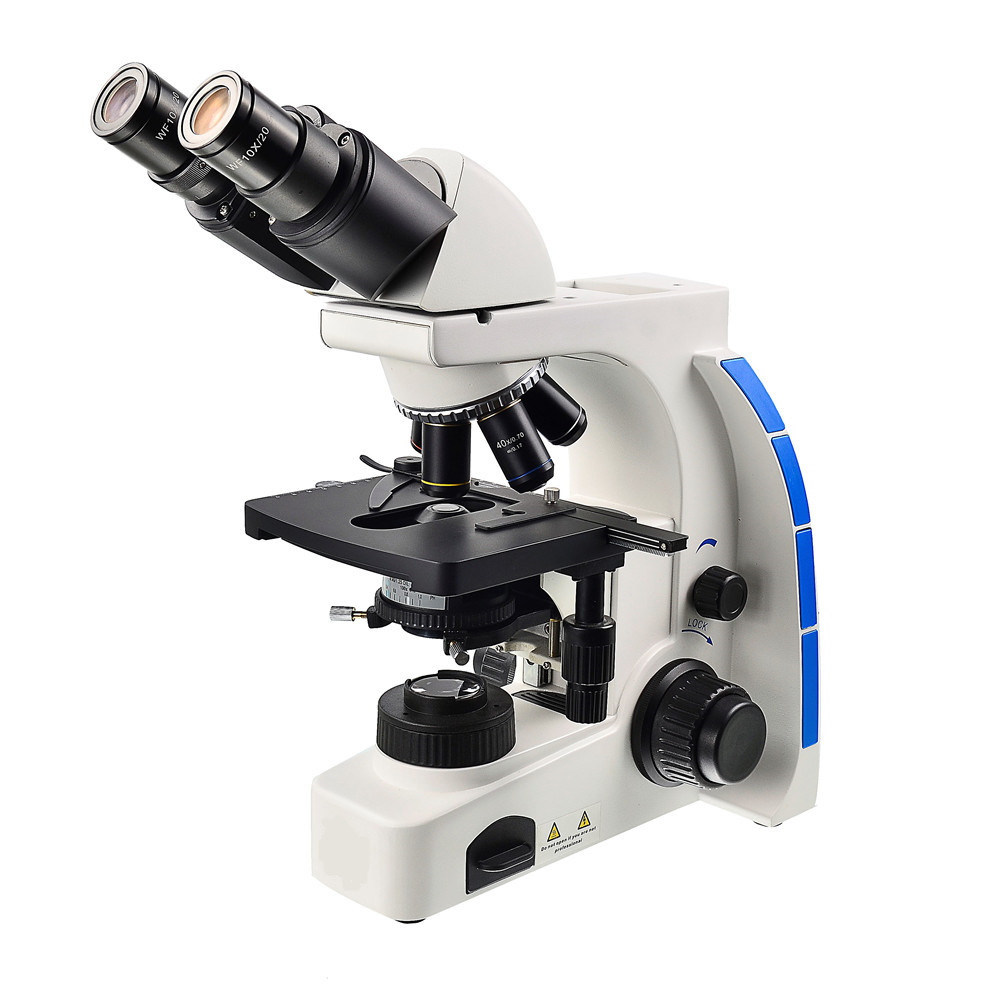

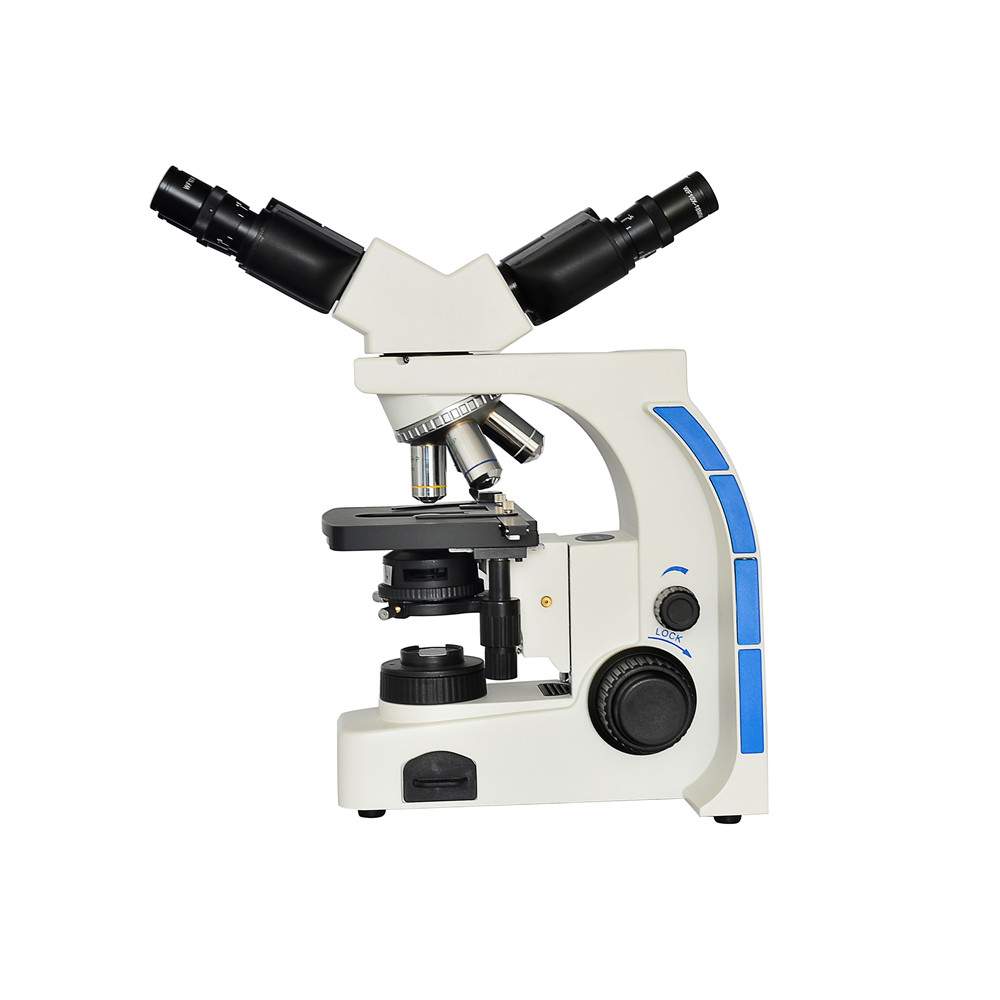

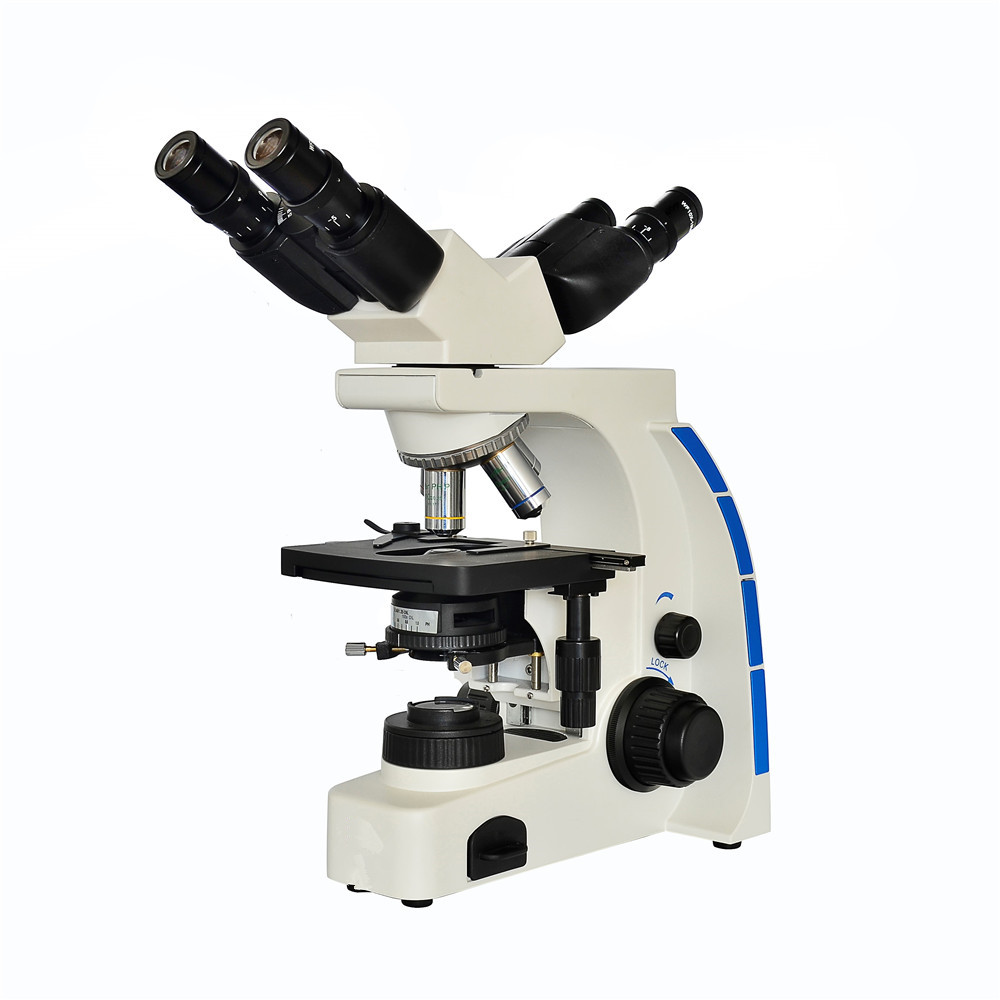

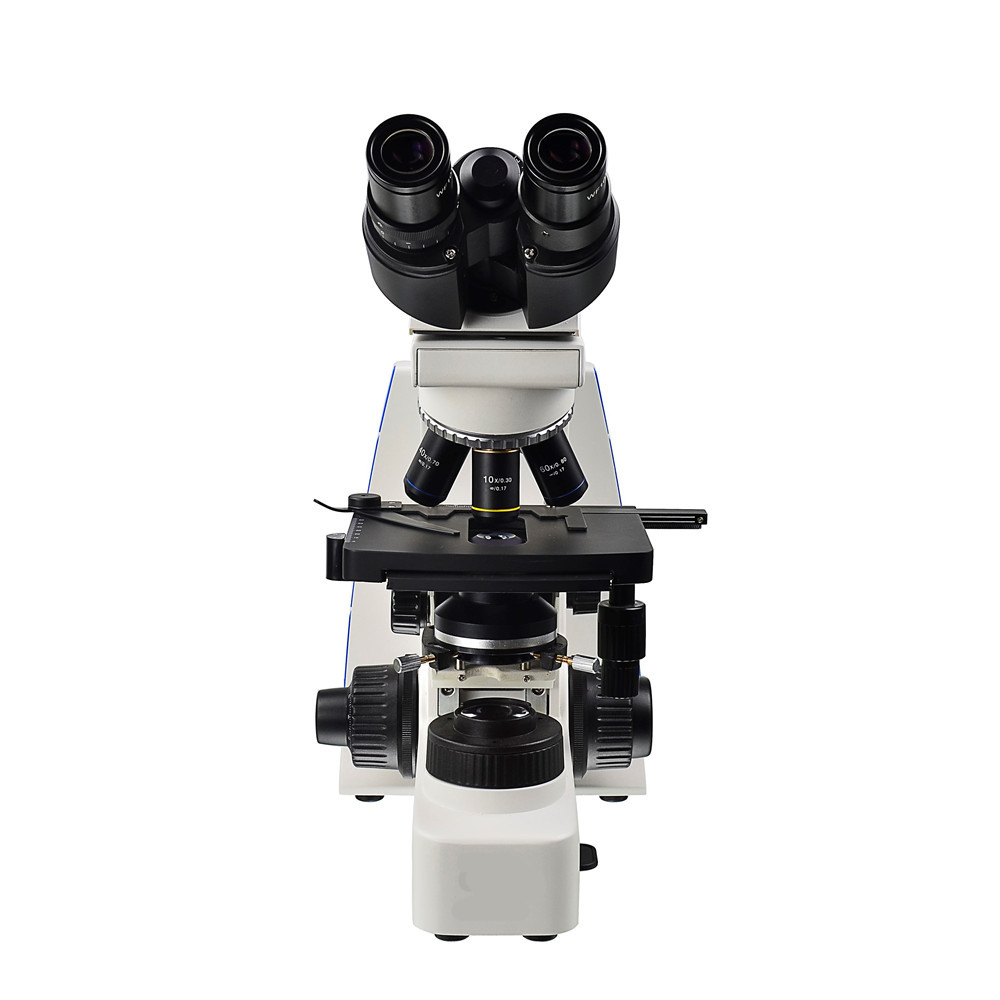

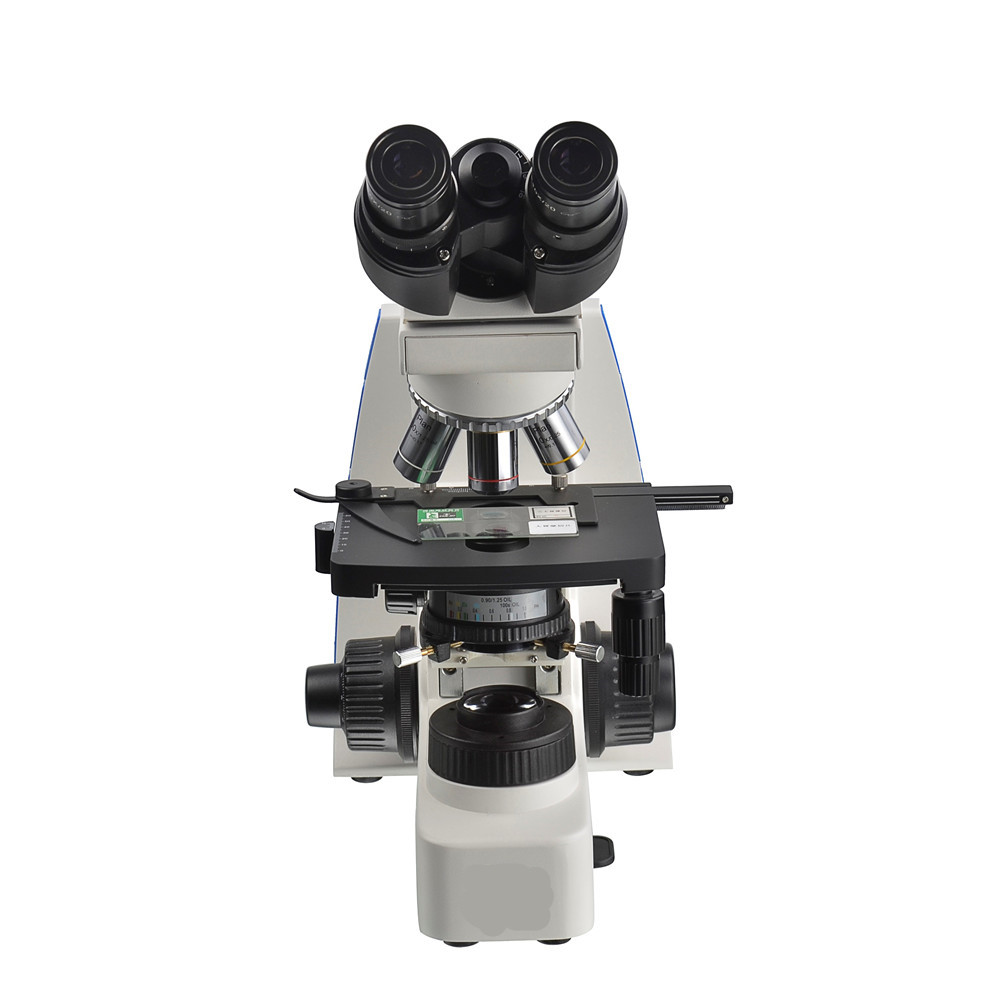

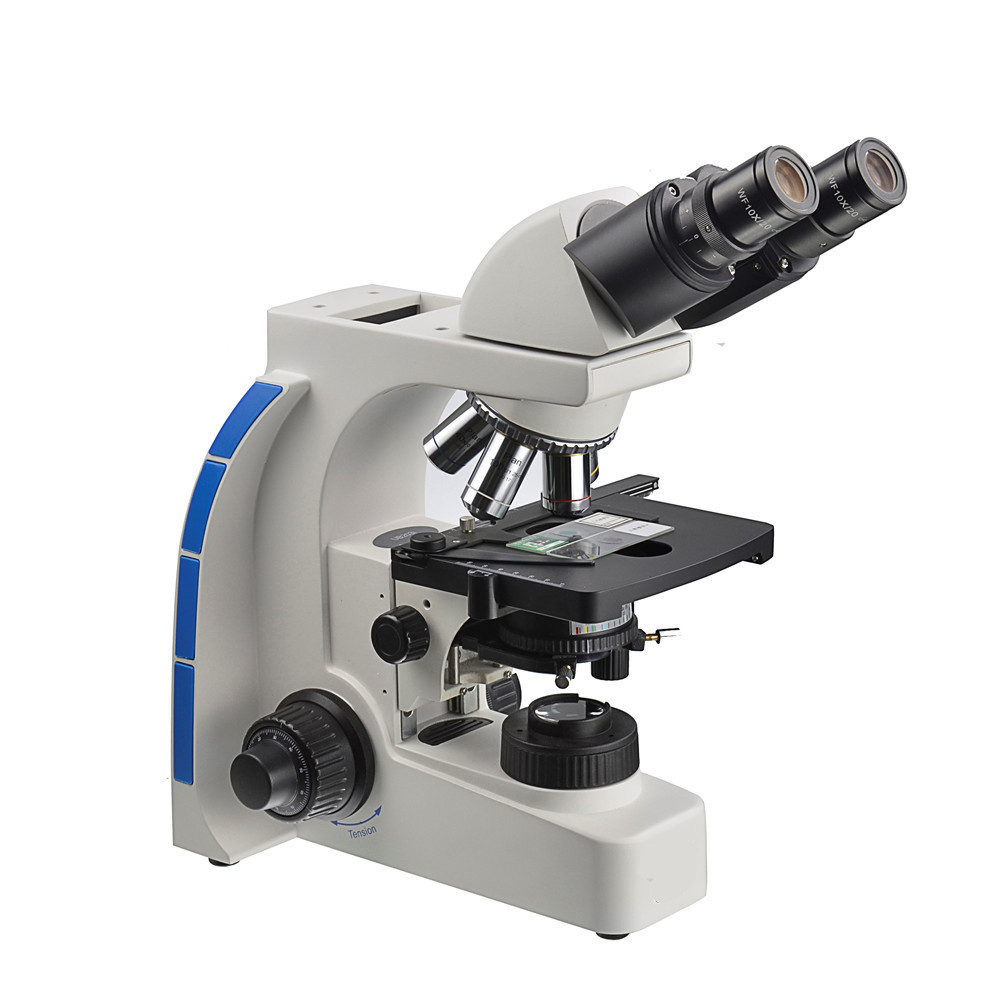

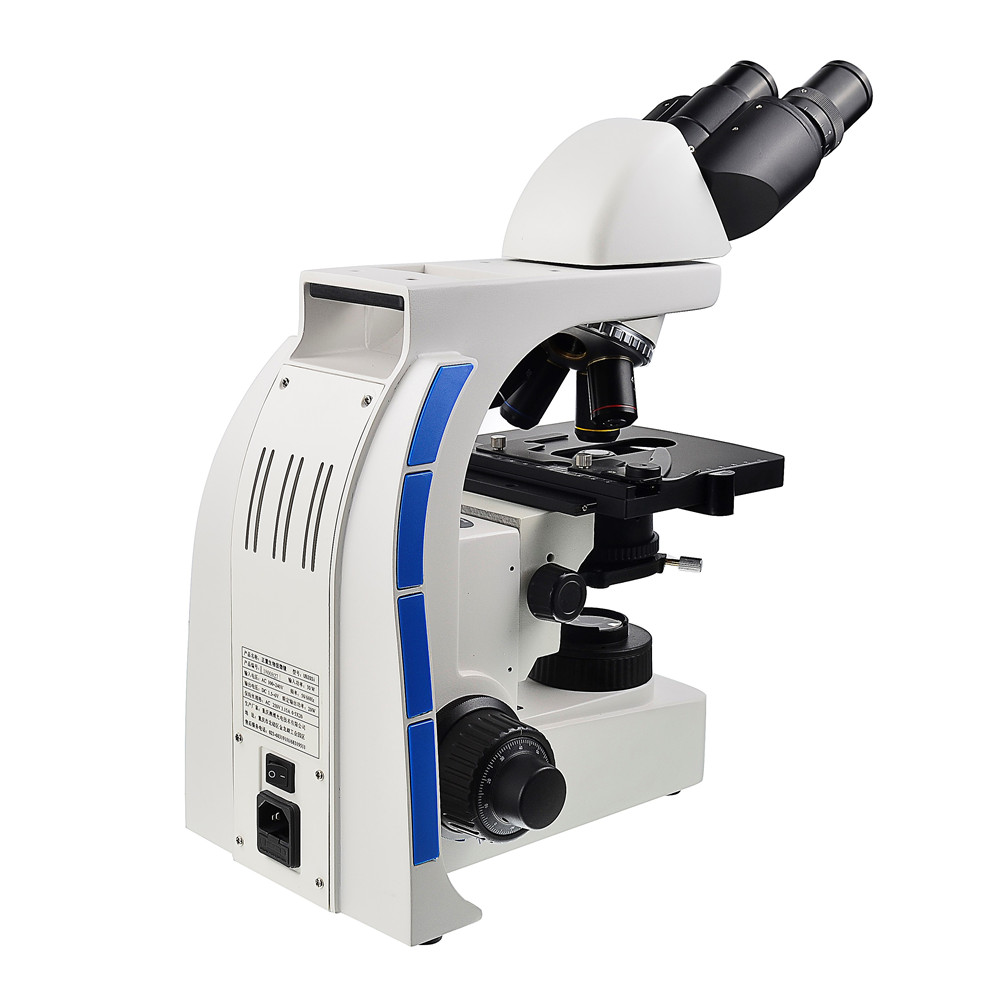

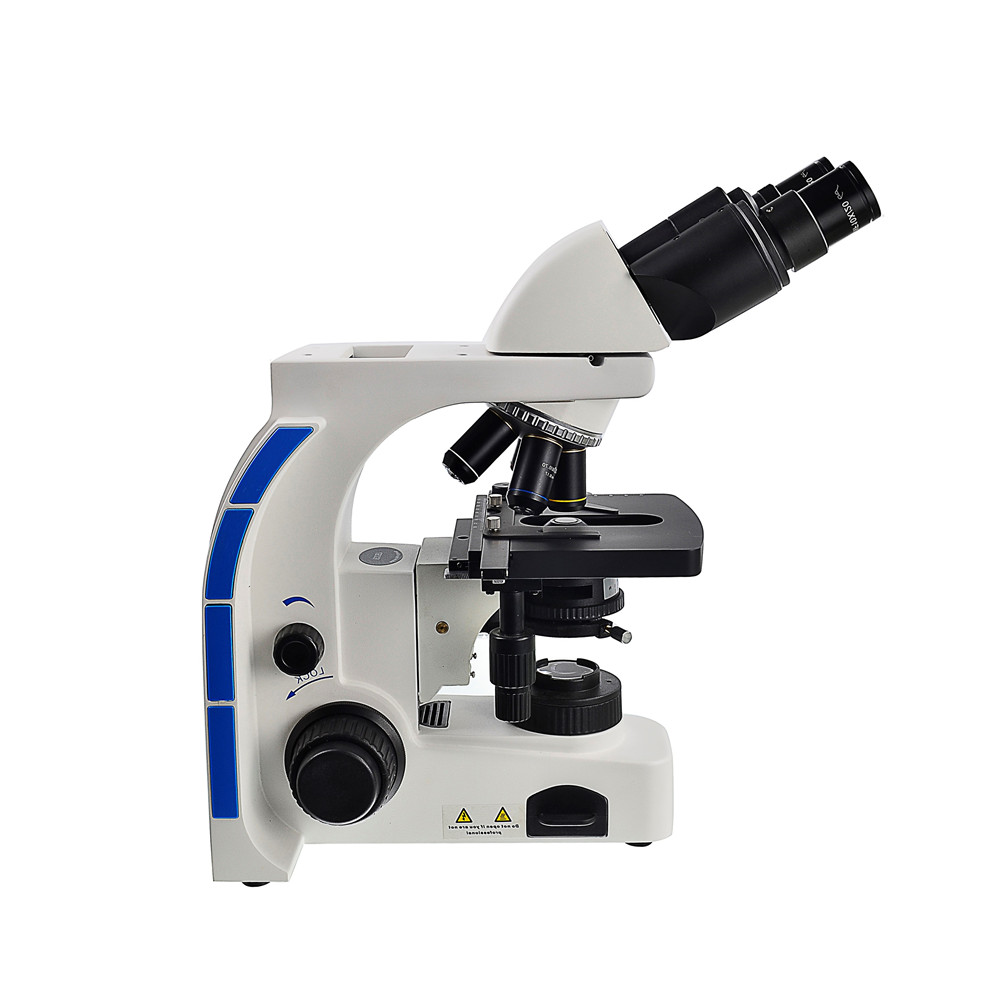

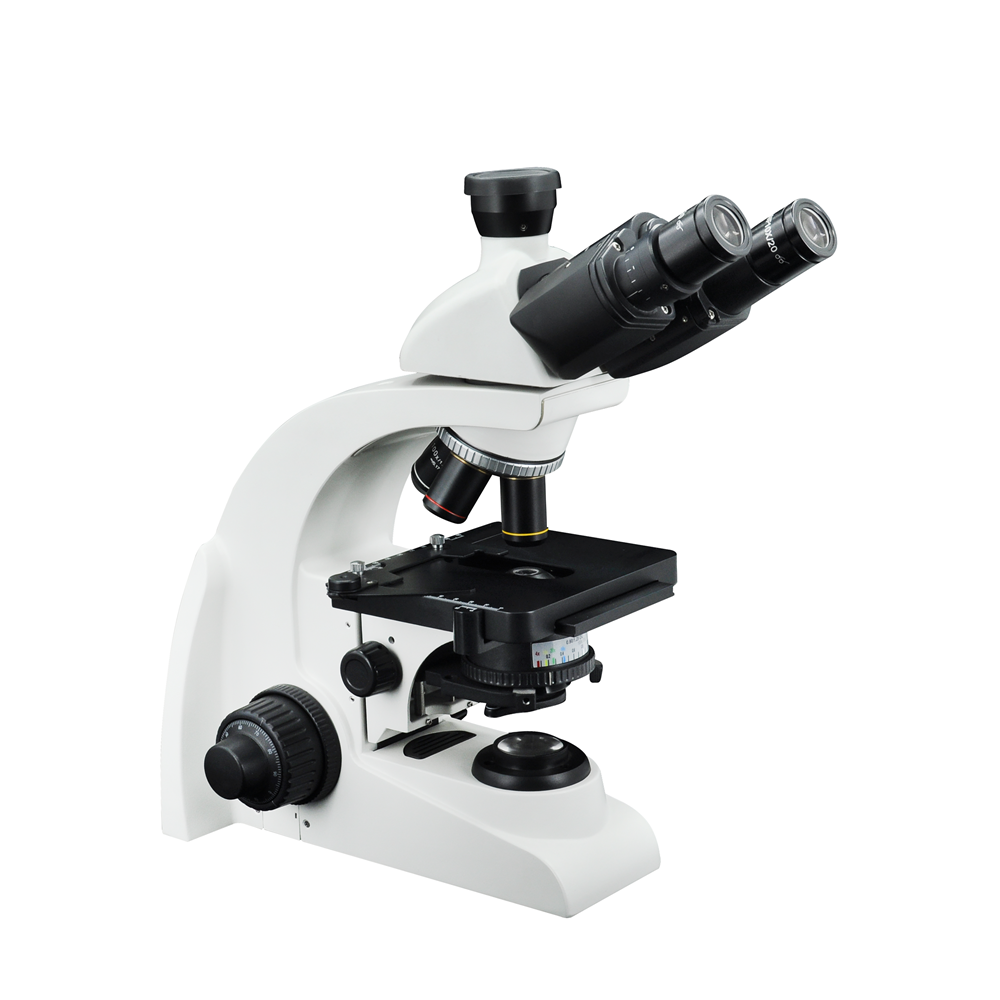

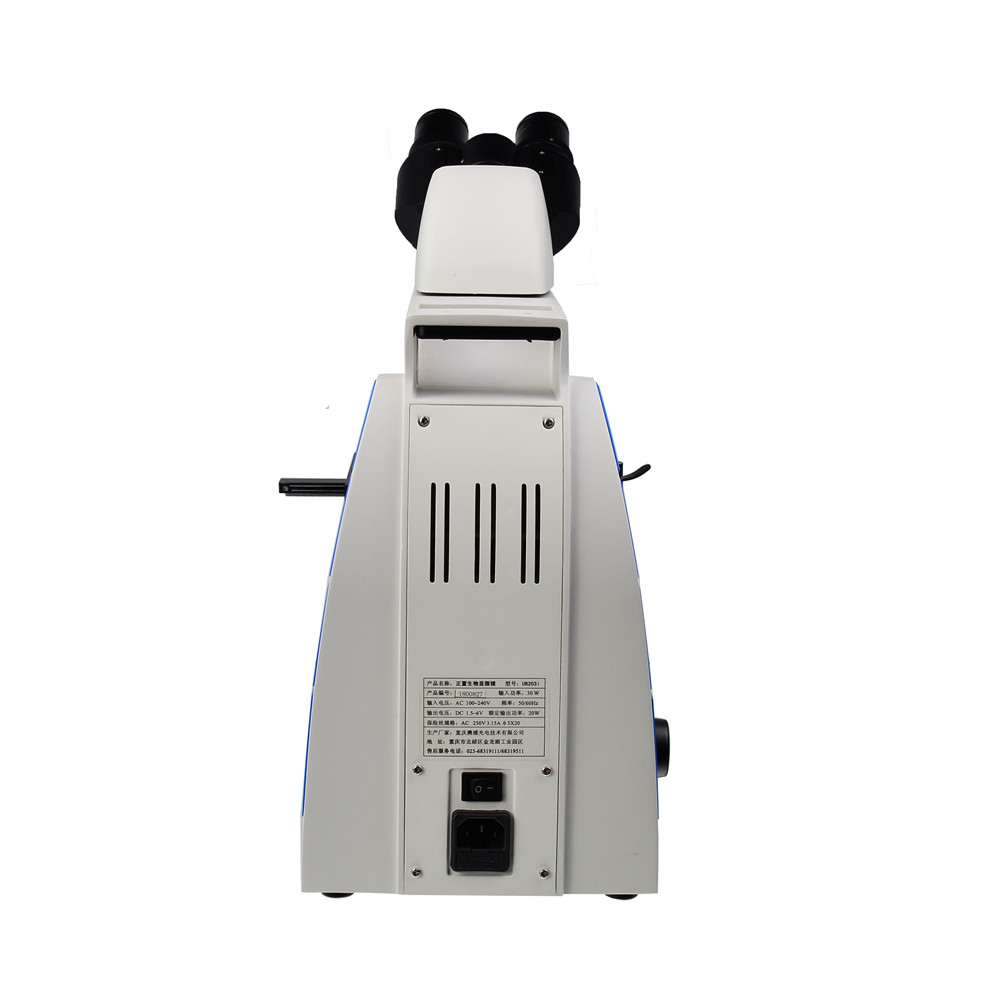

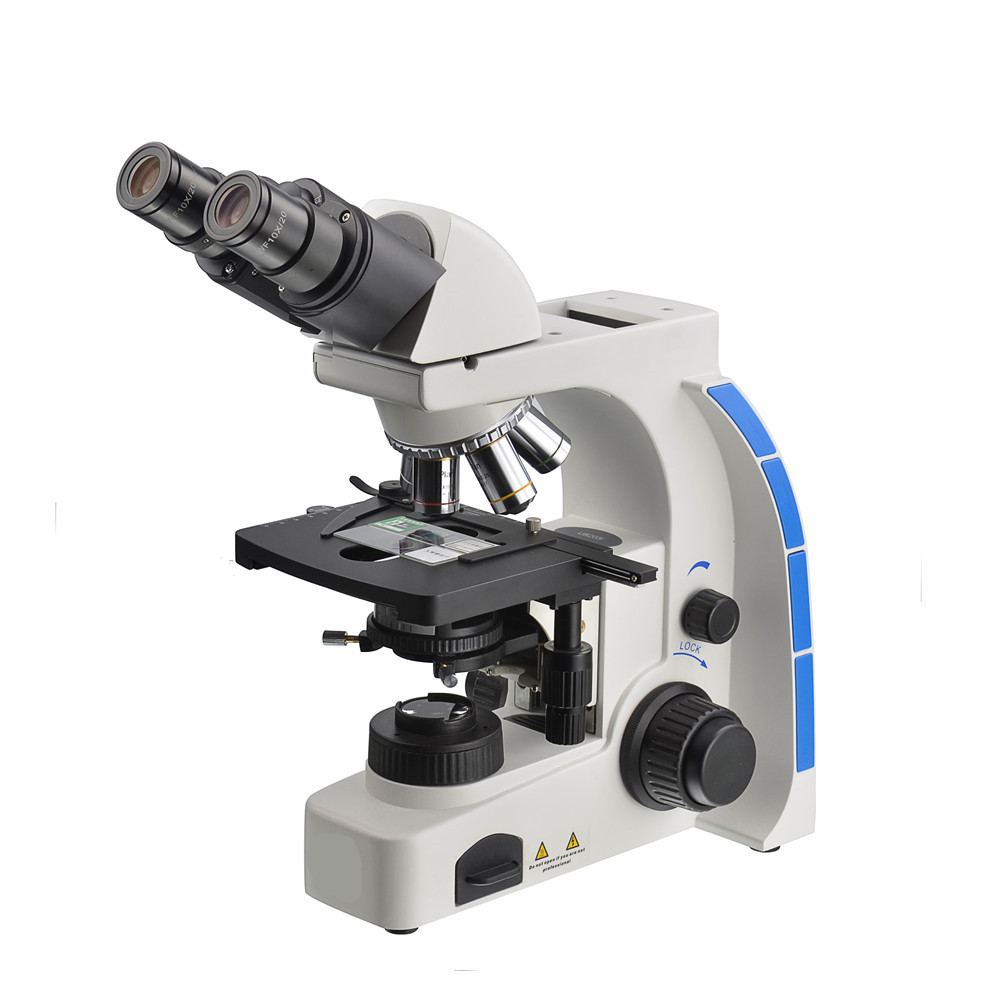

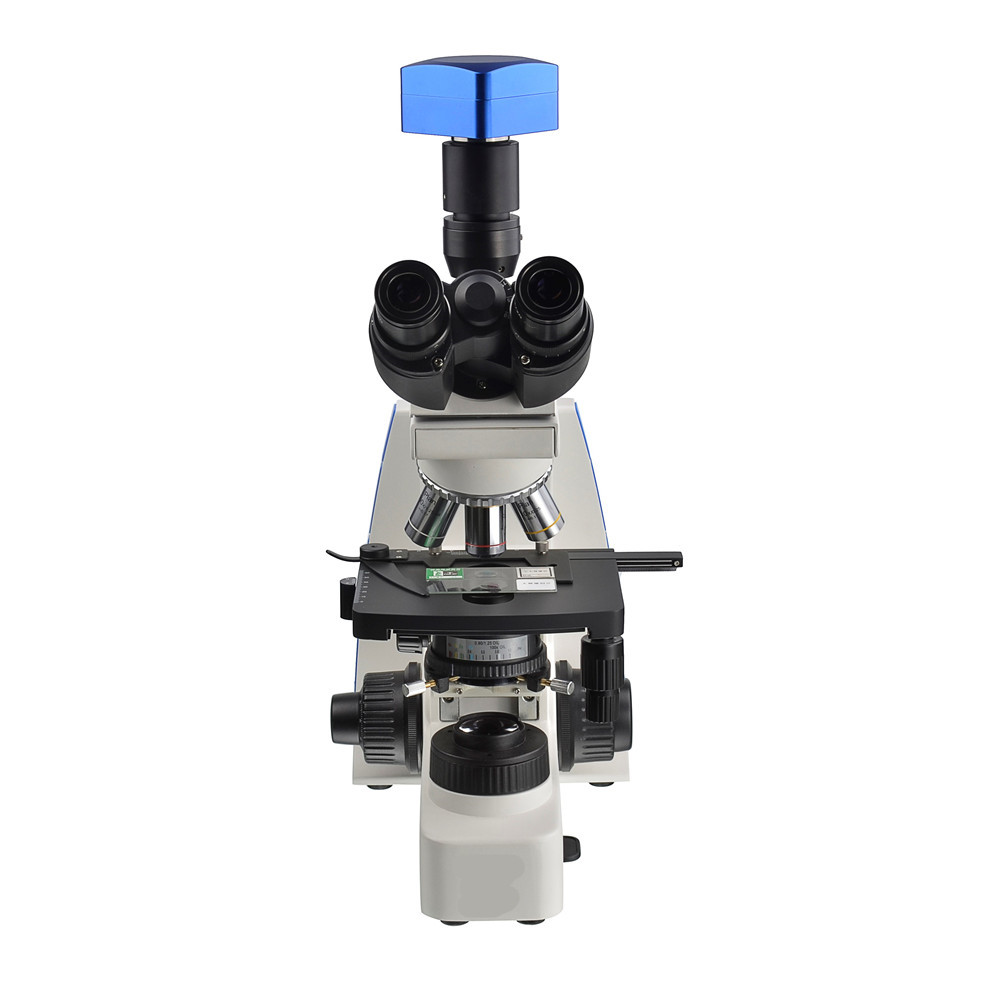

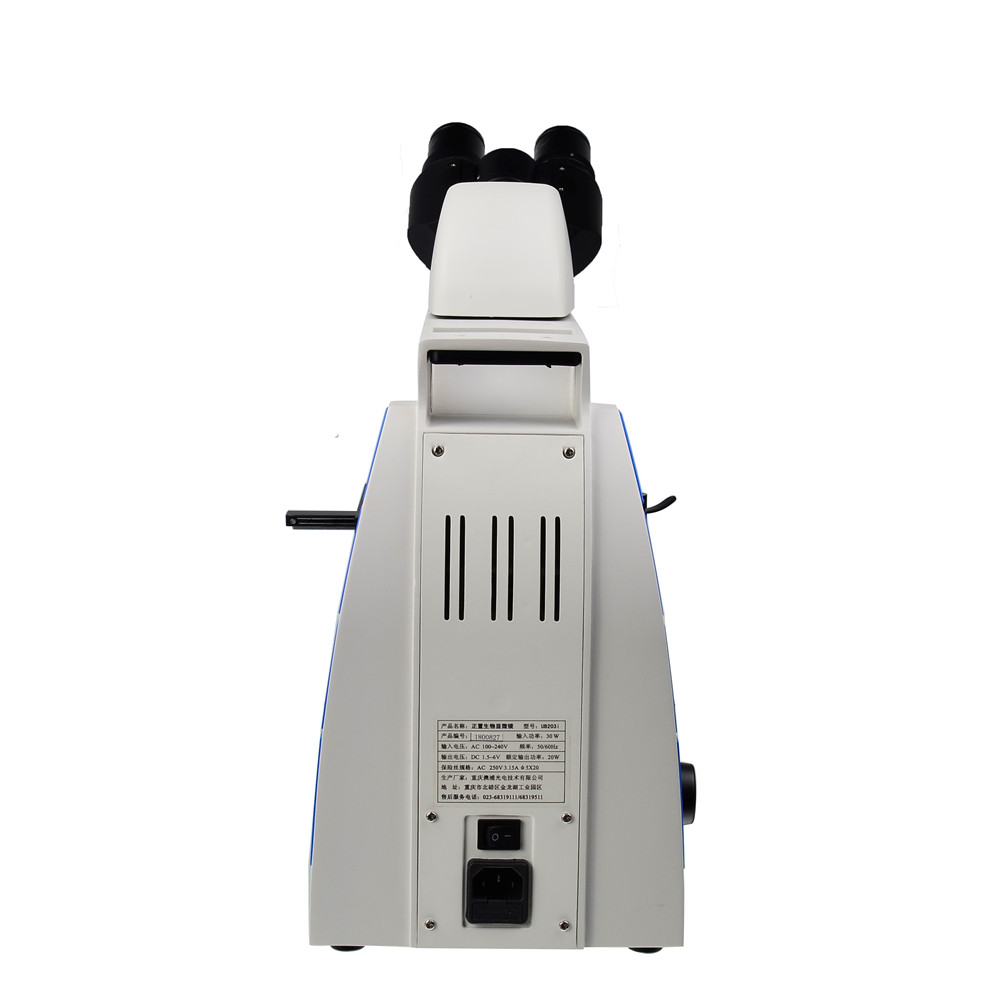

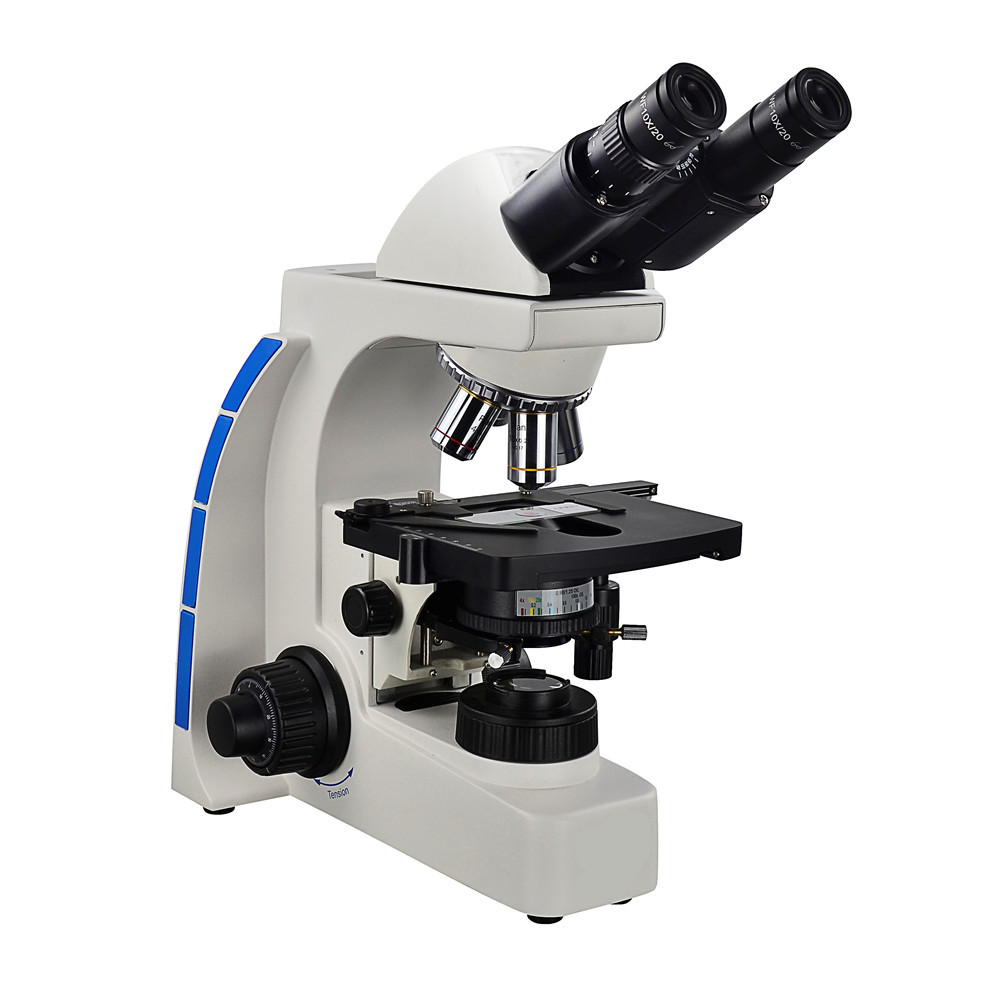

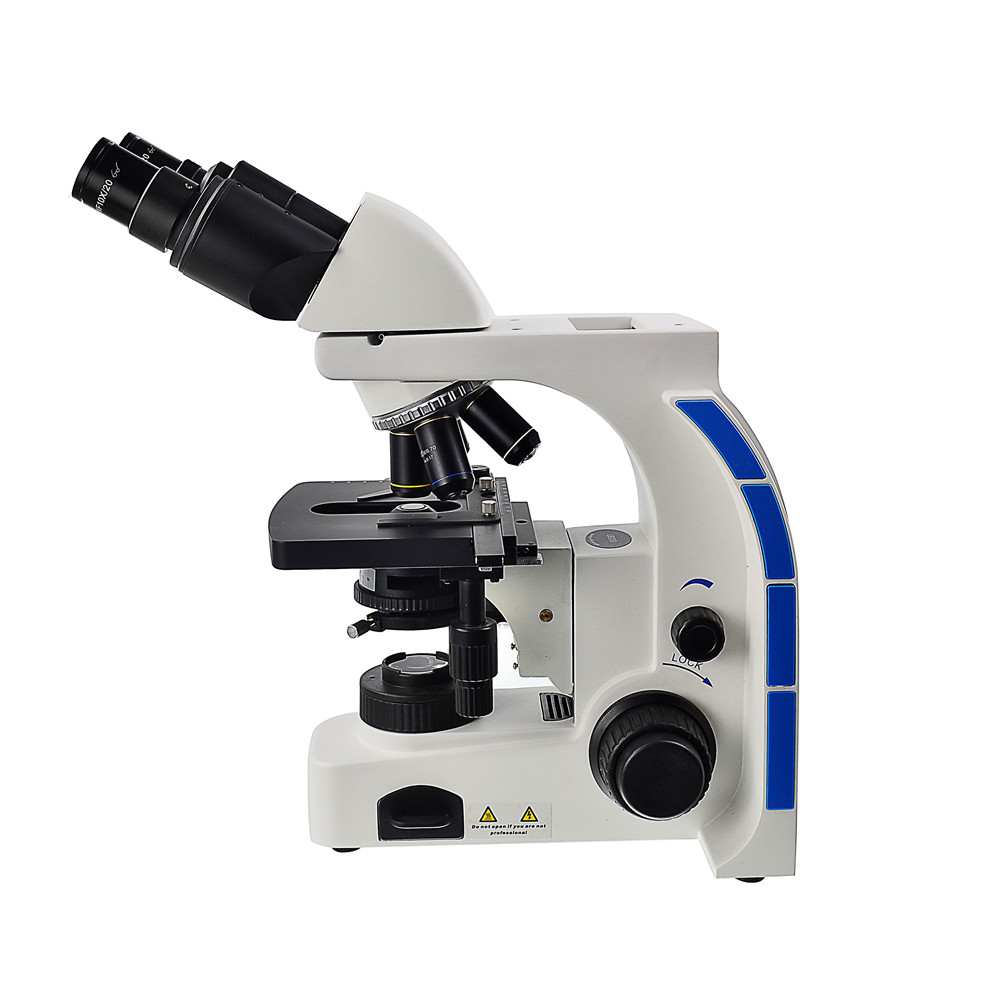

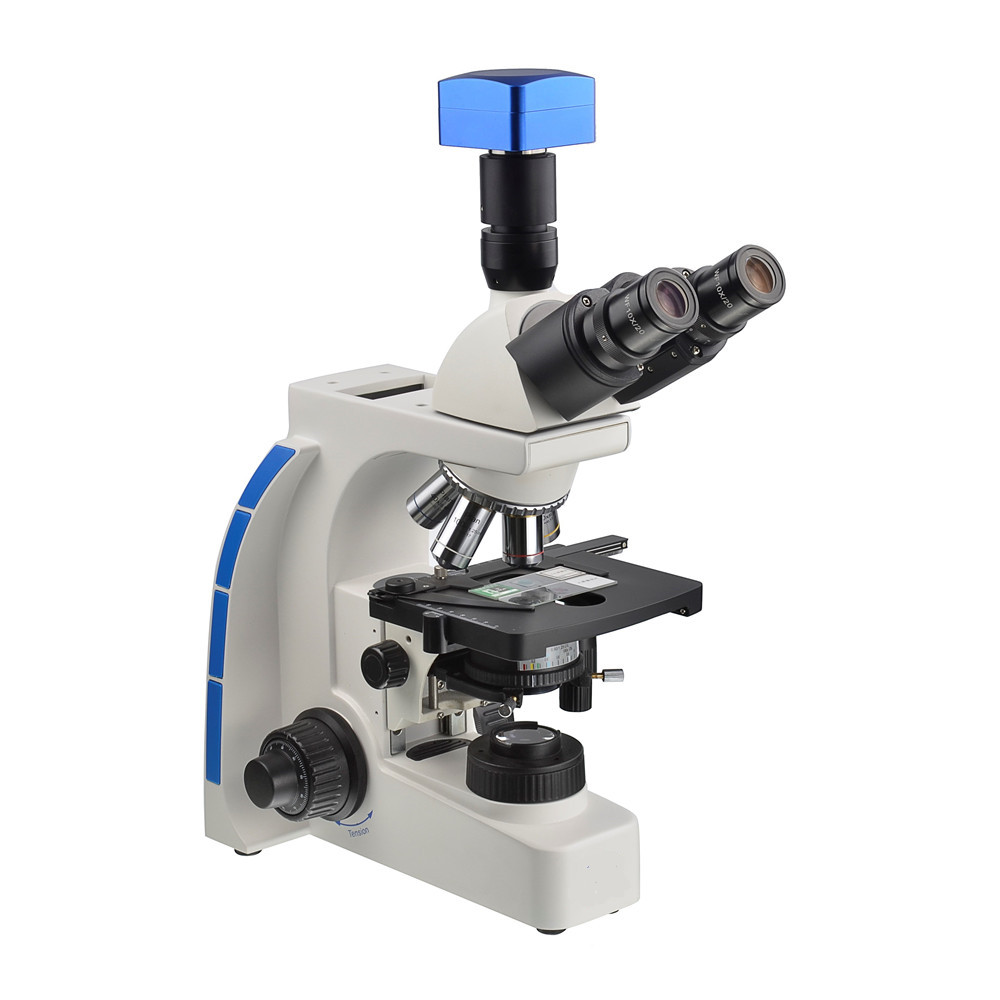

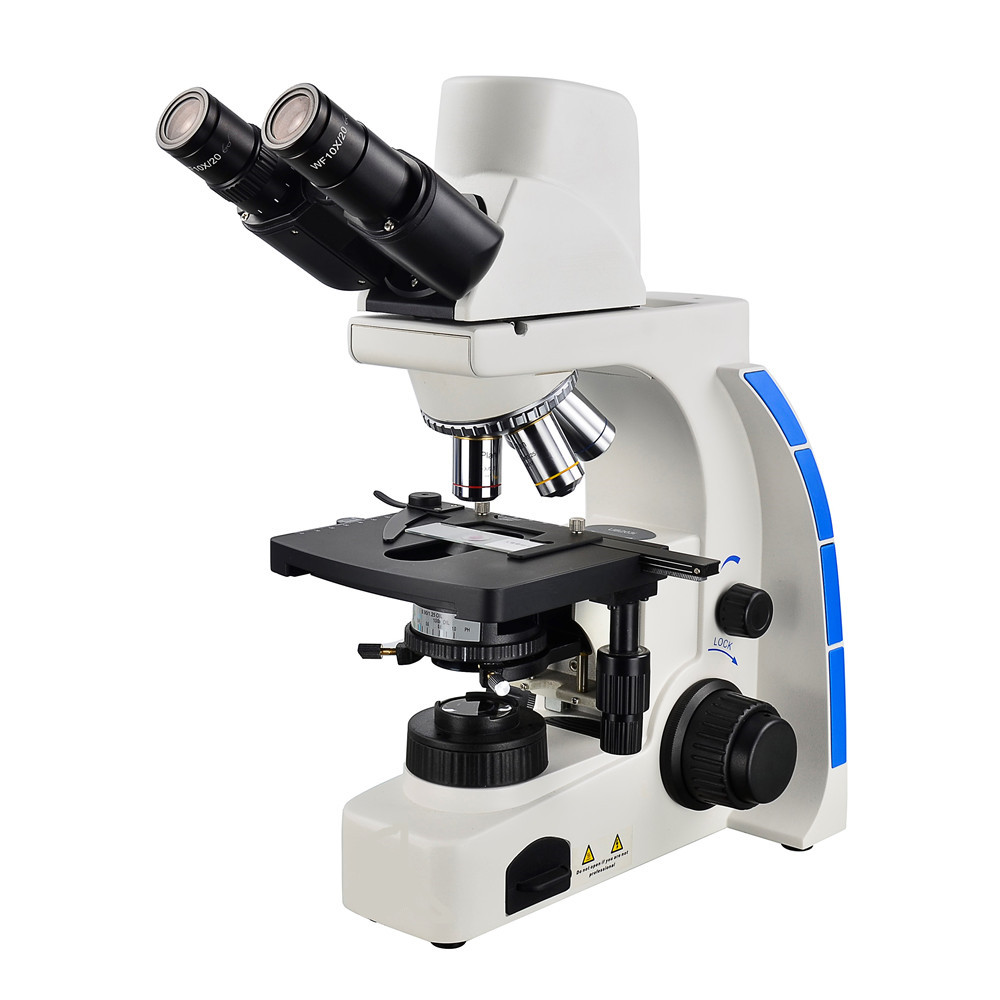

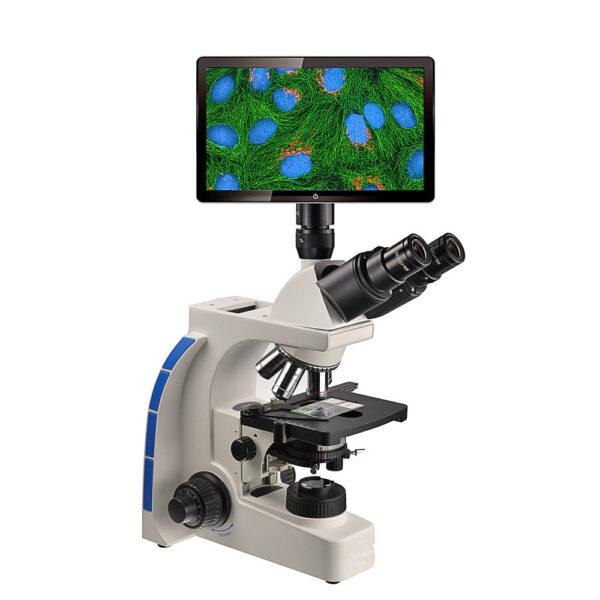

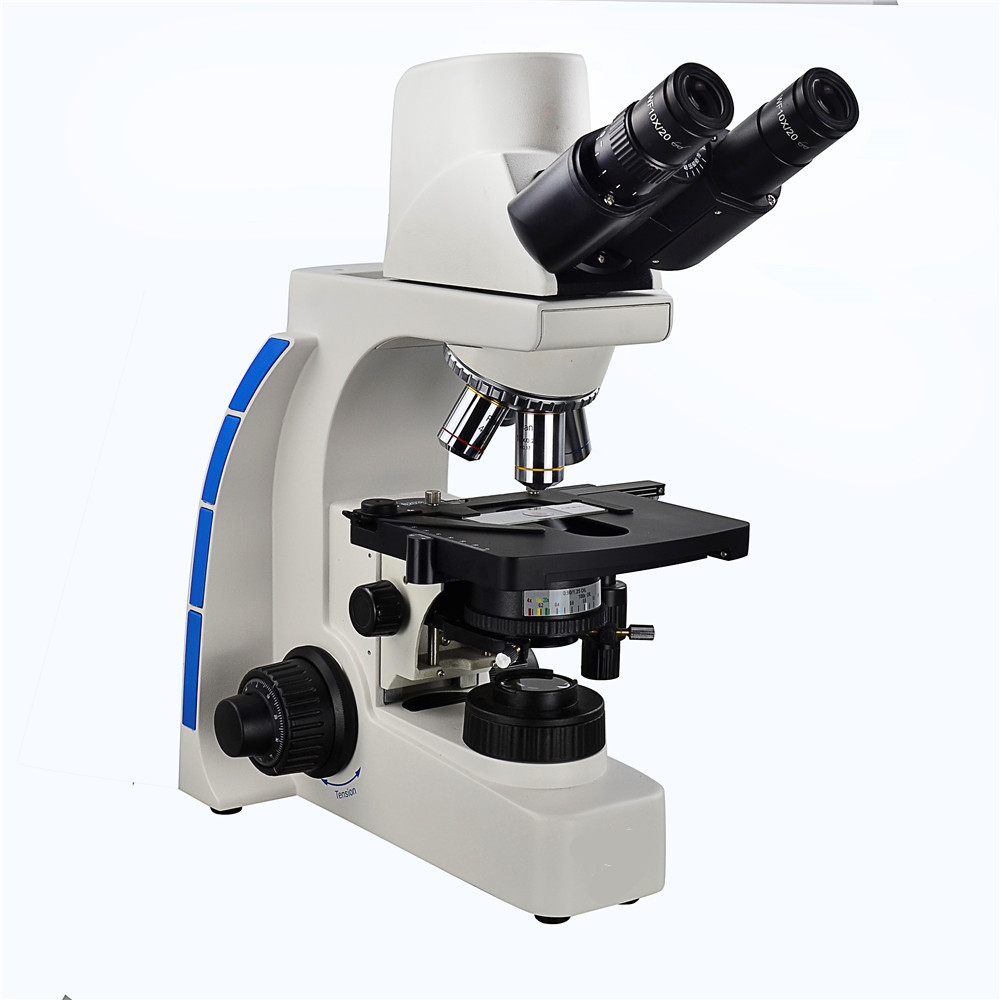

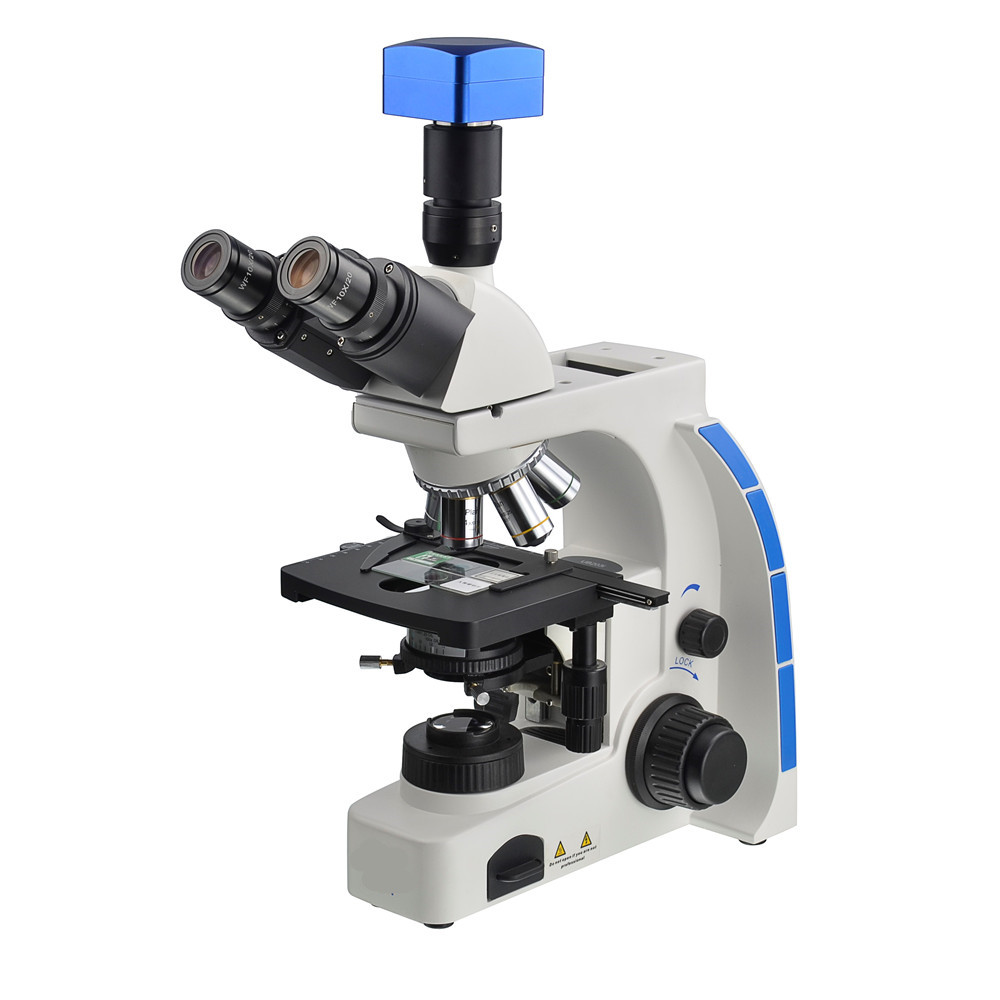

XUB200 Laboratory Biological Microscope

Key Features

• UCIS Infinity Independent Achromatic Optical System
• WF10x Plan Eyepieces, 20mm Field of View, High Eye Point up to 21mm
• Seidentopf Binocular/Trinocular Viewing Head, Inclined 30º, Rotatable 360º
• Light Distribution: Binocular 100% or Binocular/Trinocular 20% / 80%
• 52–75mm Interpupillary Distance Settings
• ±5 Diopter Adjustment
• Quadruple Nosepiece Inward Facing with Positive Click Stops
• Infinity Plan Achromatic 4x, 10x, 40x(S) and 100x (S/Oil) Objectives
• Right-Hand Controls, Low Position, Mechanical Stage 156 × 138mm, Movement Range 76 × 54mm
• N.A. 1.25 Abbe Condenser with Iris Diaphragm, with Phase-Contrast Socket
• Coaxial Coarse and Fine Focus Mechanism with Markings on Fine Focus Knobs; Fine Focus Sensitivity 0.001mm
• 6V 20W Halogen Illumination, 110–240V Wide Voltage
• Includes Dust Cover, Clear Blue Filter, Power Cord, and Immersion Oil
