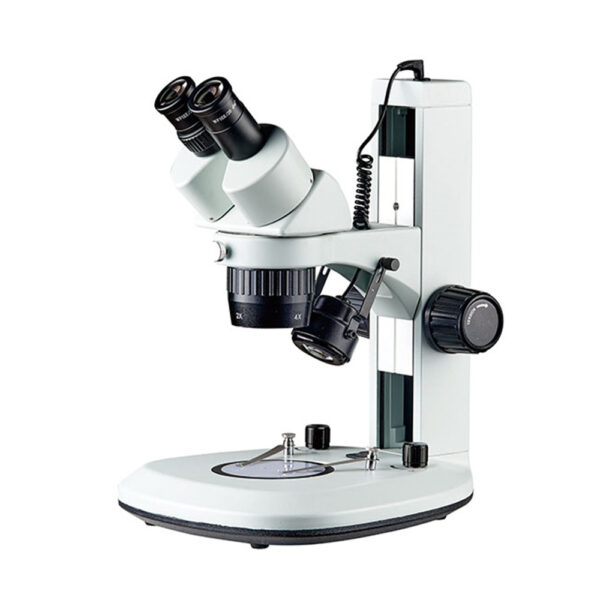

XT60-J3L 10/20/30/40X Stereo Zoom Microscope

Good image quality, high resolution, large depth of field, wide field of view, and long working distance.

Easy to operate and comfortable, with quality optics and a durable, reliable operating mechanism.

Best eye point height ensures that users with different vision can achieve clear and satisfying images.

The new design delivers excellent resolution and true color images, meeting the needs of modern biomedical research and the electronics industry.

Description

Optical member coated with special coating for clear, bright, and flat field of view images.
Shift zoom lens combinations available: 1X/4X, 2X/4X, 1X/2X, 1X/3X.
Standard magnification of 20X/40X, with optional auxiliary lenses to expand the range to 5X–160X.
100mm standard working distance, suitable for 10X wide field eyepieces (FOV 20mm, high eye point).

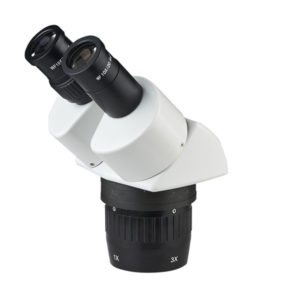

45° inclined binocular observation head, diopter adjustable, 360° rotation for flexible use.
Vertical hand wheel zoom for high accuracy and repeatability.

Objective	2X/4X

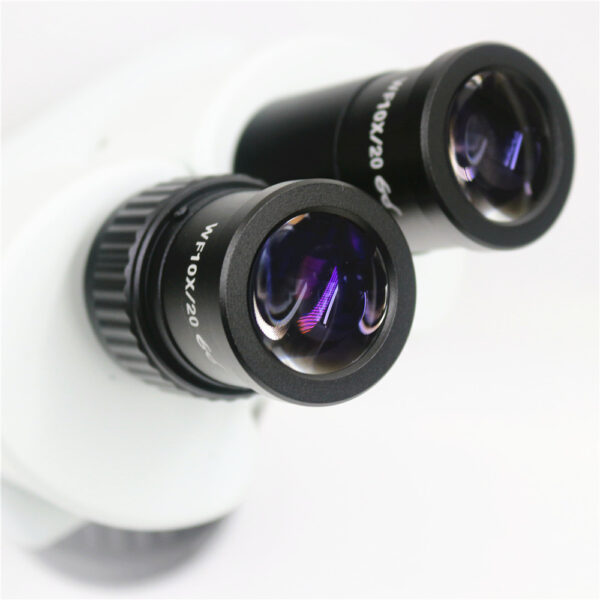

Eyepiece	High eye point wide field WF10X/20mm
Magnification	20X/40X
Observation Head	Binocular, 45° tilt, 360° rotation, interpupillary distance 54–76mm, bilateral diopter adjustment
Working Distance	100mm (effective distance)
Focus Brackets	Focusing hand wheel, adjustable elastic, lifting range 50mm

Eyepiece	WF10X/20mm, WF15X/15mm, WF20X/10mm
Objective	1X/4X, 2X/4X, 1X/3X, 1X/2X
