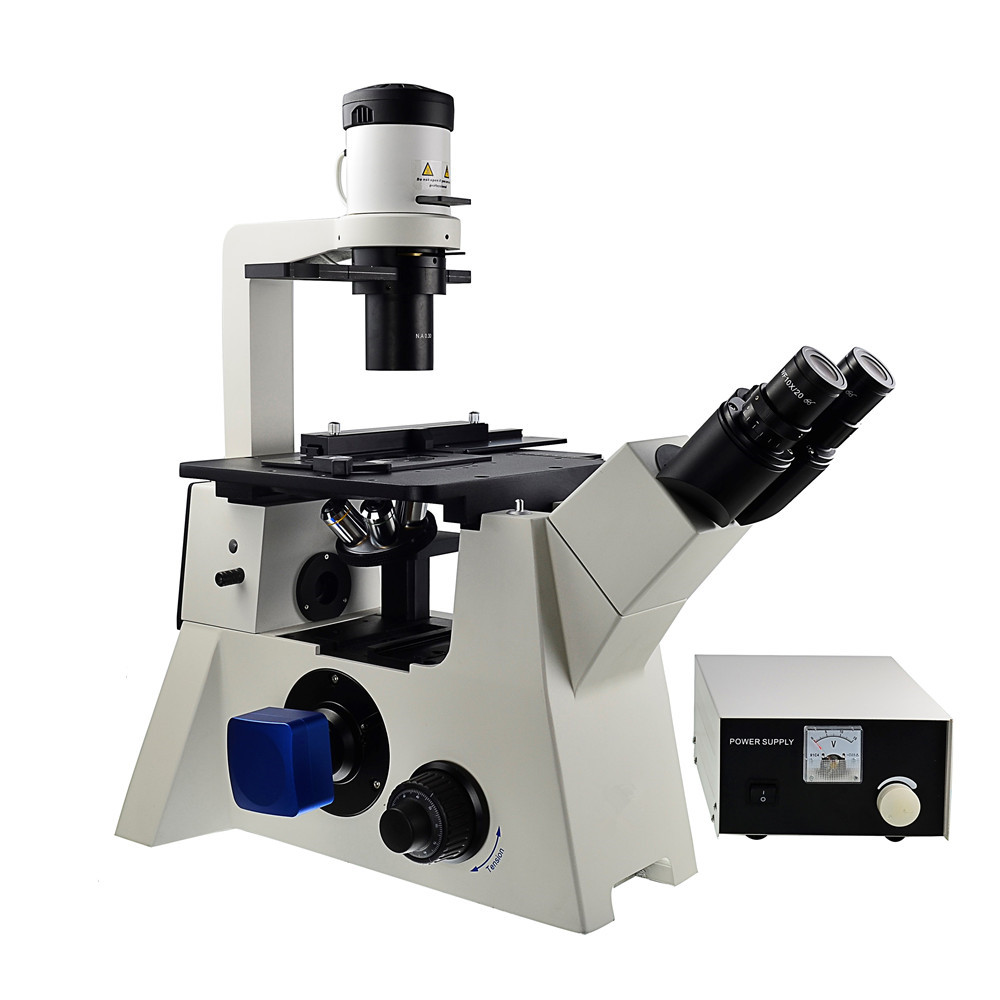

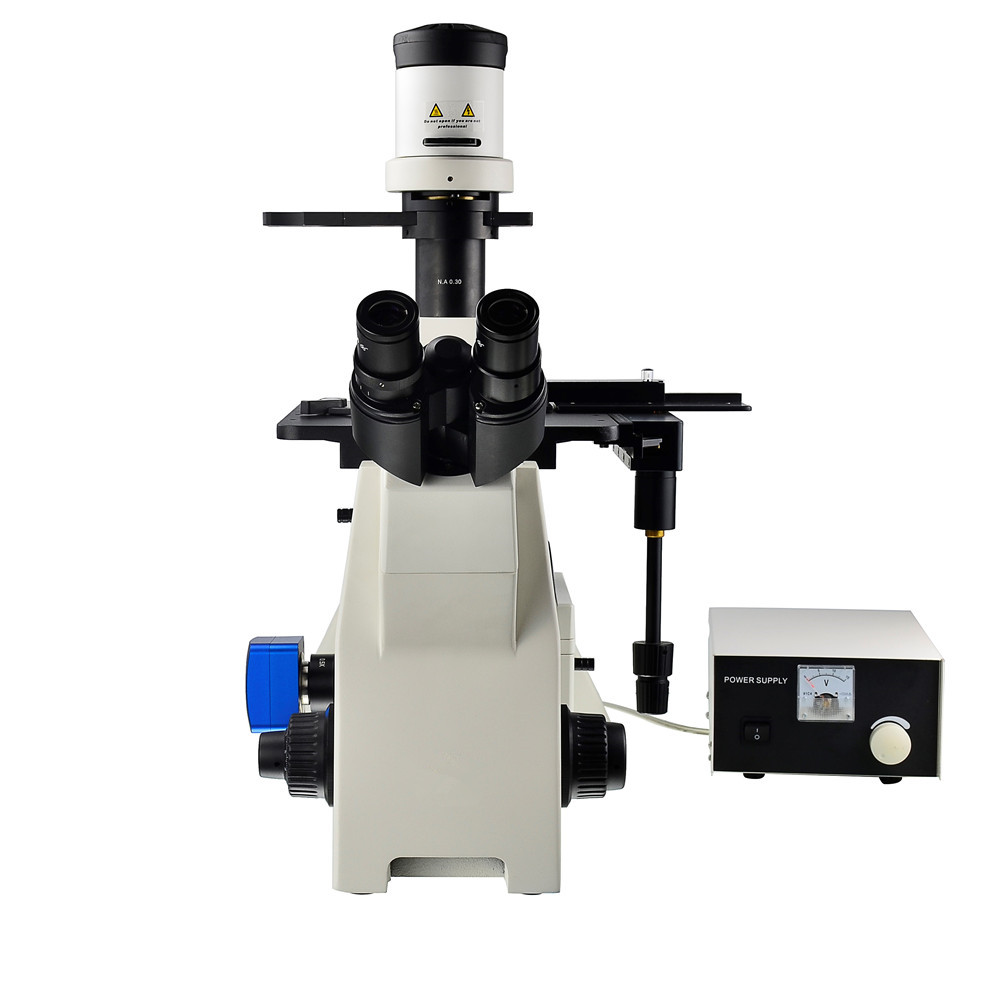

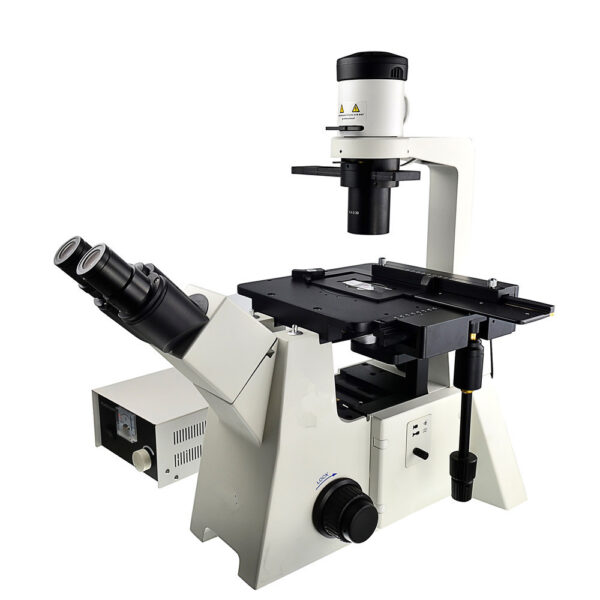

XIB200 Inverted Lab Biological Microscope

UCIS Infinity Independent Achromatic Optical System
WF10X Plan Eyepieces, 20mm field of view, high eye point up to 21mm
Seidentopf binocular viewing head, 45° inclined, 52–75mm interpupillary distance
±5 Diopter adjustment for precision focusing
Quintuple nosepiece, inward facing with positive click stops
Infinity long work distance Plan Achromatic 10X, 20X, 40X and Phase-contrast 20X objectives
Right-hand controls, low-position mechanical stage (240×260mm), movement range 135×85mm
N.A. 0.30 Abbe condenser with iris diaphragm and phase-contrast slide, long WD 72mm
Coaxial coarse & fine focus mechanism with 0.001mm sensitivity
6V 30W halogen illumination system
Supplied with dust cover and power cord

Description

Parts	Specification	XIB200
Frame	One-piece construction from arm to base	●
Observation Tube	Binocular Tube, Interpupillary distance 52-75mm, 45° inclined, diopter adjustable	●
Eyepieces	WF10X/20mm Plan Eyepiece, High eye-point up to 21mm	●●
Objectives	Infinity Long WD Plan Objectives: 10X, 20X, 40X	●
Stage	Fixed Stage, 240×260mm; movement range: 135×85mm with coaxial knob	●
Revolving Nosepiece	Quintuple Revolving Nosepiece	●
Illumination	6V30W Halogen lamphouse with Blue, Green, Yellow filters	●
Fluorescence Accessory	100W Mercury lamphouse, Power supply, Multi-filter turret (UV, V, B, G), Osram Mercury Bulb	●
Others	Power cord, Dust cover, Allen Screw Drivers (2mm, 2.5mm, 3mm)	●
