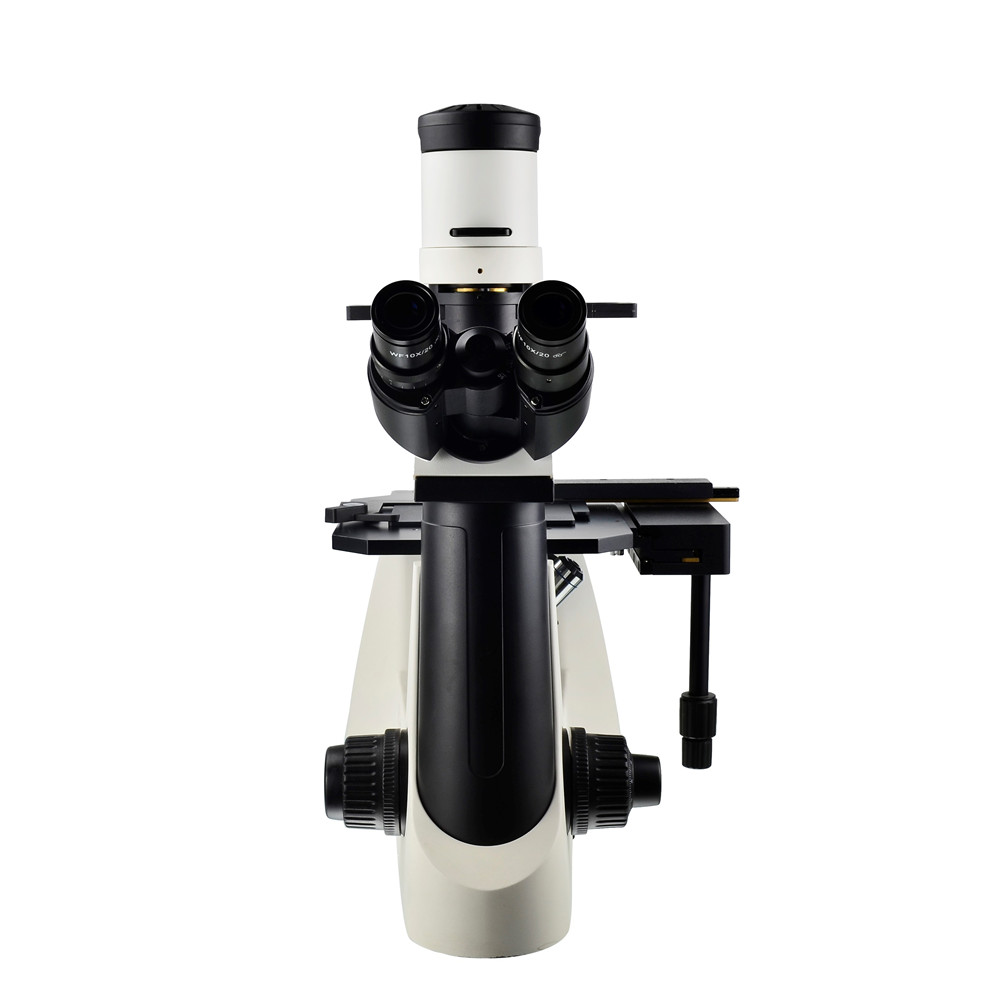

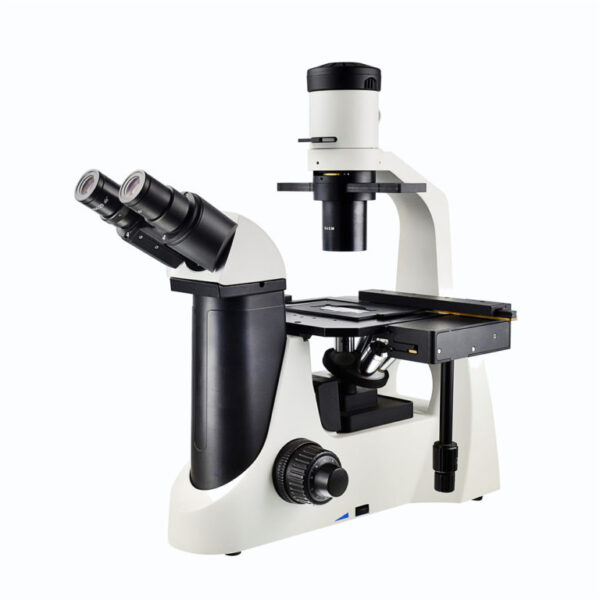

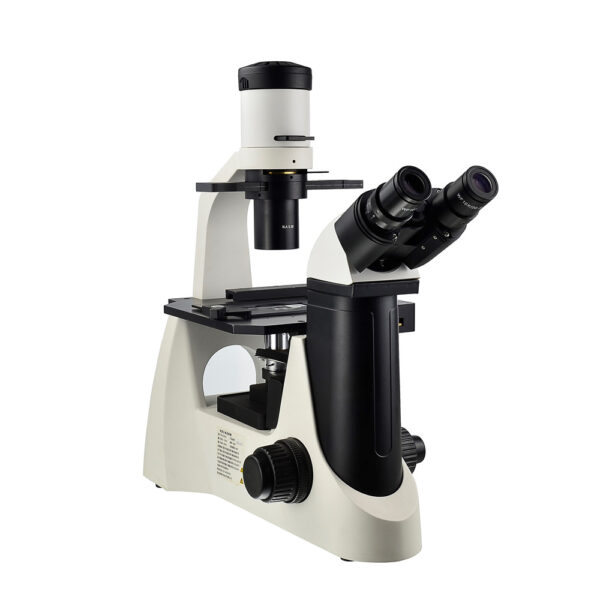

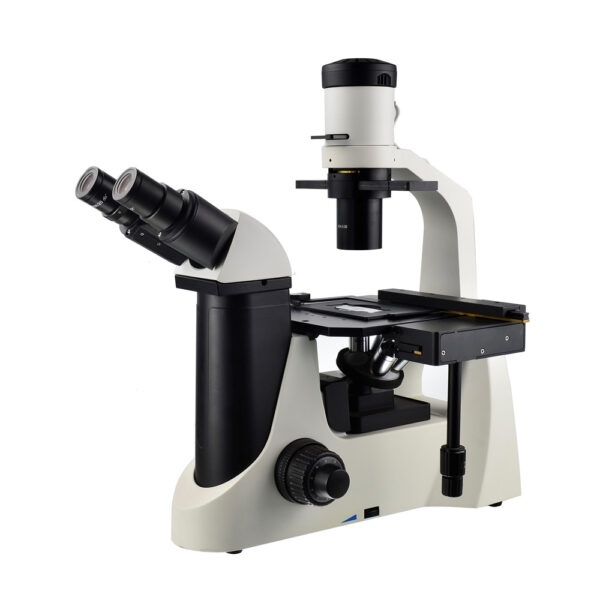

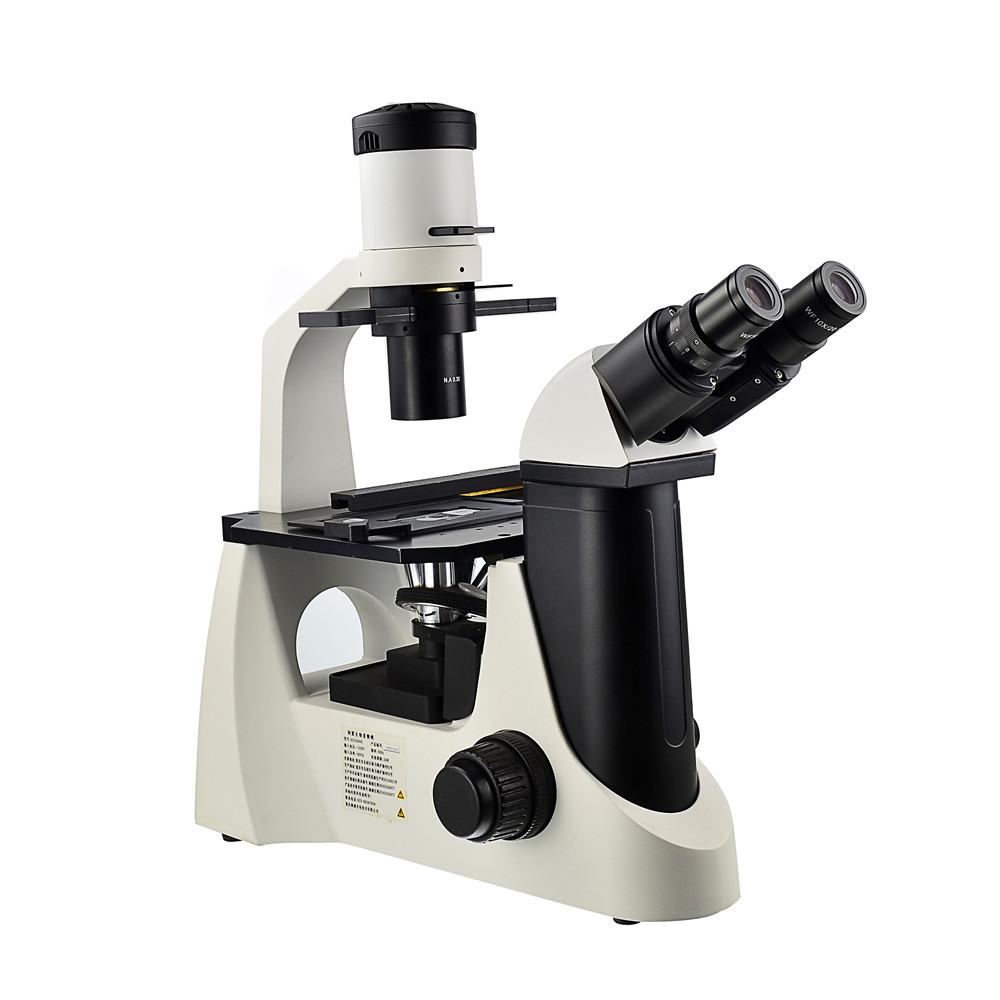

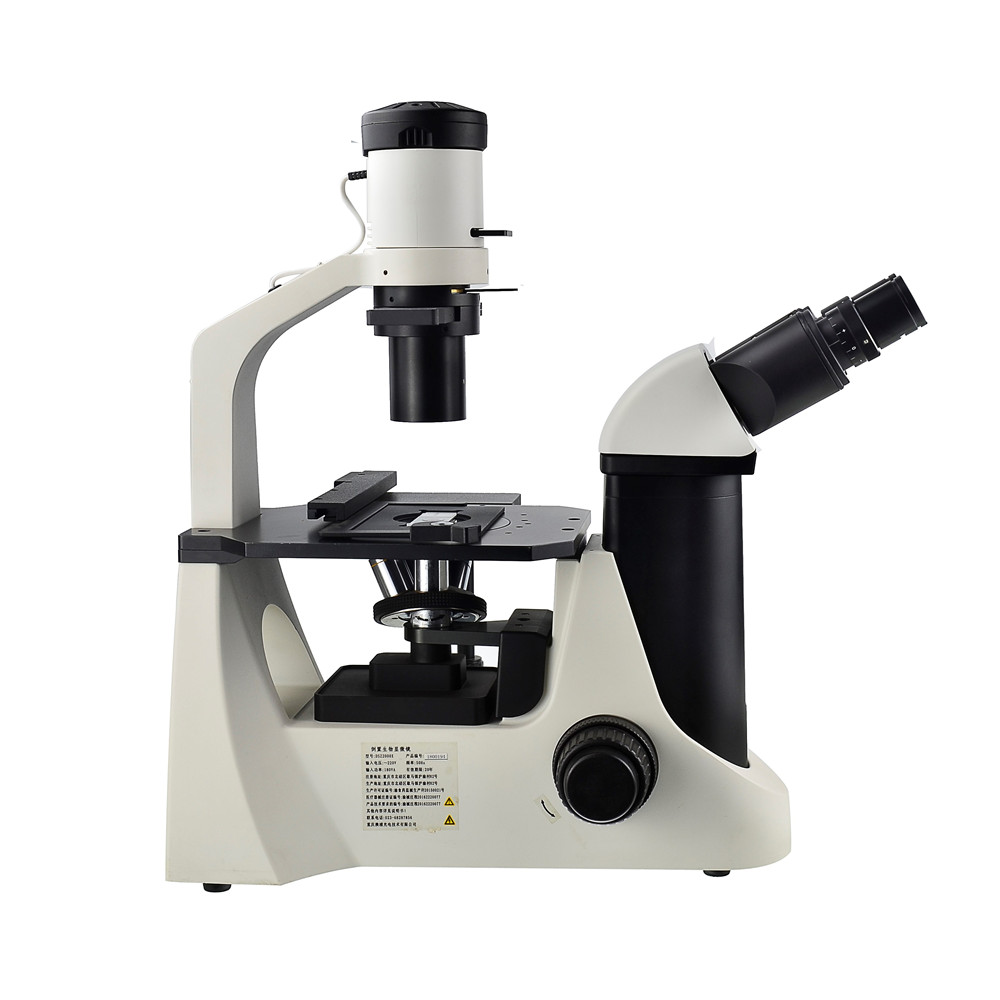

XIB100 Inverted Lab Biological Microscope

UCIS Infinity Independent Achromatic Optical System
Seidentopf binocular viewing head, inclined 30º, 52–75mm interpupillary distance settings, ±5º diopter adjustment
WF10x plan eyepieces, 20mm field of view, high eye point up to 21mm
Quintuple nosepiece inward facing with positive click stops
Infinity long work distance plan achromatic 10x, 20x, 40x and infinity long work distance phase-contrast 20x objectives
Right hand controls, low position, fixed stage, 240mm × 180mm
N.A. 0.30 Abbe condenser with iris diaphragm, phase-contrast slide, long work distance 72mm
Coaxial coarse and fine focus mechanism with markings on fine focus knobs; fine focus sensitivity 0.001mm
6V 30W halogen illumination
Dust cover, power cord, 110V–240V wide voltage
Optional Accessories: fluorescence attachment (two sets of fluorescence excitation filter)

Description

Parts	Specification	XIB100
Frame	One-piece construction from arm to base	●
Observation Tube	Trinocular tube, 48–75mm interpupillary distance, 30° inclined, light split 20/80, diopter adjustable	●
Eyepieces	WF10X/20mm Plan eyepieces (pair), high eye-point up to 21mm, with centering telescope	●
Objectives	Infinity Long WD Plan Objectives: 10X, 20X, 40X	●
	20X Infinity Plan Phase-Contrast Positive Objective	●
Stage	Fixed stage 240×180mm, with φ110 drop specimen holder & specimen holder	●
Nosepiece	Quintuple revolving nosepiece	●
Illumination	Ultra-long WD condenser, phase-contrast slide (10X/20X/40X), 6V 30W Osram halogen lamphouse, blue/green/yellow filters, power supply	●
Others	φ2mm Allen screwdriver, power cord, dust cover, fuses	●
“●” means standard configuration, “○” means optional accessory.
